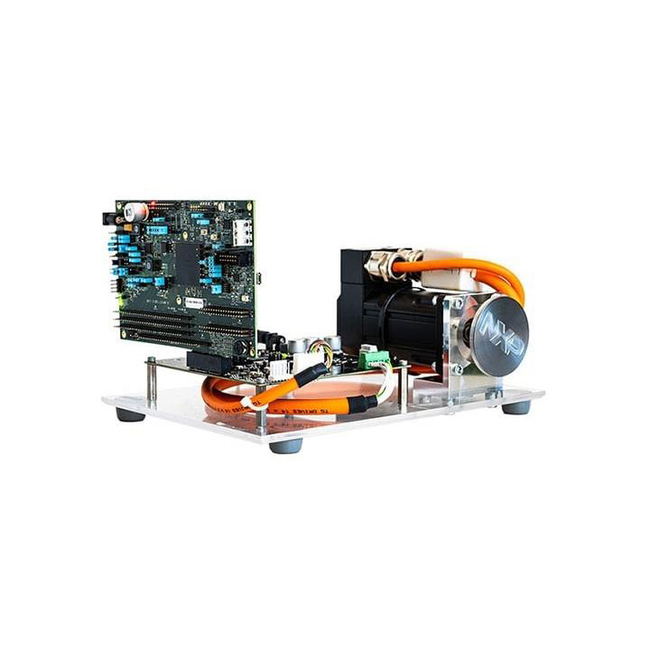

MCSPTR2A5775E

Product Description: MCSPTR2A5775E Development Kit

Detailed Description

The MCSPTR2A5775E from NXP Semiconductors is a development kit designed for 3-phase Permanent Magnet Synchronous Motor (PMSM) control. This kit is targeted at applications requiring high reliability and safety, making it ideal for automotive and industrial motor control systems.

Key Features

• Core Processor: eTPU
• Utilized IC / Part: FS6520, MC33937, MPC5775E
• Application: Motor Control, specifically for PMSM
• Safety Standard: Targeting ISO 26262 ASIL D
• Mounting Type: Socket

Contents

• Evaluation Board(s)
• Cable(s)
• Necessary Software & Documentation

Benefits

• High Integration: Includes all necessary components for immediate development, reducing time to market.
• Safety Compliance: Designed to meet stringent safety standards, suitable for automotive applications.
• Flexibility: Supports various motor types and configurations.

Typical Applications

• Automotive motor control systems
• Industrial motor drives
• Robotics and automated systems

Technical Specifications

• Voltage Range: Typically 12V to 48V
• Communication Interfaces: CAN, SPI, LIN (subject to board configuration)
• Programming: Supported by NXP's software tools for easy integration and testing.

Manufacturer Part Number

• MCSPTR2A5775E

This development kit provides a robust platform for developers looking to implement advanced motor control systems with a focus on safety and reliability.
